Description
Specifications;

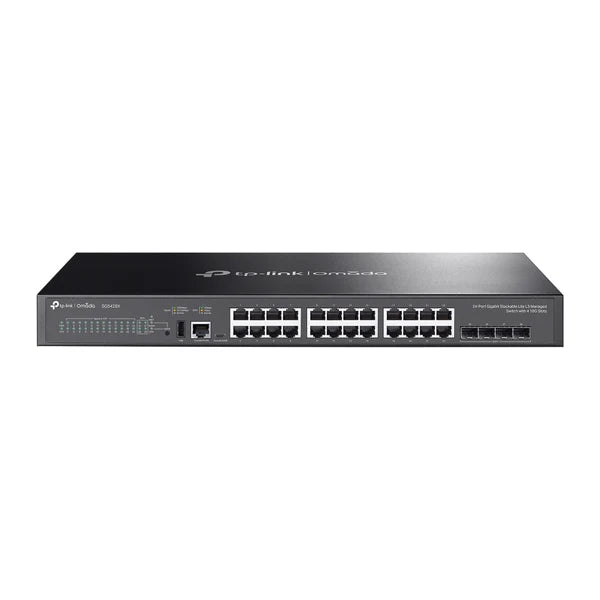

- Interfaces: 24× 10/100/1000 Mbps RJ45 Ports, 4× 10 Gbps SFP+ Slots, 1× USB 2.0 Port, 1× RJ45 Console Port, 1× USB Type-C Console Port
- Switching Capacity: 128 Gbps per unit
- Packet Forwarding Rate: 95.23 Mpps
- Physical Stacking: Up to 4 units, offering up to 80 Gbps stacking bandwidth
- Layer 3 Features: Static Routing, RIP, OSPF, DHCP Server/Relay
- Management: Centralized cloud management (Omada SDN), Web, CLI, SNMP, RMON
- Power & Cooling: 100–240V AC, max 19.9W power consumption, fanless
- Dimensions: (17.3 times 7.1 times 1.7) in (440 times 180 times 44) mm), 1U rackmountable
- MAC Table: 16K entries
- Buffer Memory: 12 Mbit
- Security: ACL, Port Security, DoS Defend, 802.1X
- 10G Uplinks: Four 10G SFP+ slots provide high-bandwidth connectivity for servers or backbone networks.
- Omada SDN Integration: Enables centralized cloud management, zero-touch provisioning, and intelligent monitoring.
- Stacking Reliability: Physical stacking allows multiple switches to act as one, increasing capacity and reliability.
- Advanced L3 Routing: Supports RIP, OSPF, and Static routing for efficient network segmentation.
